Porsche Boxster-Cayman 2001 Fuse Box/Block Circuit Breaker Diagram

Porsche Boxster-Cayman 2001 Fuse Box/Block Circuit Breaker Diagram



SymbolDescription
Fuse Assignments
ROW A
1High Beam Headlight, Right, High Beam Indicator Light
2High Beam Headlight, Left
3Side Lights, Right
4Side Lights, Left
5Instrument Illumination, Locating Light, Number Plate Light (Not Canada), Fog Light(Japan), Rear Fog Light (Japan)
6Seat Heating
7Fog Lights (Not Japan), Rear Fog Lights (Not Japan)
8Number Plate Light (Canada)
9Dipped Beam Headlight, Right
10Dipped Beam Headlight, Left
2Hazard Warning Lights
3Two-Tone Horns
4Engine Compartment Fan
5Reversing Light, ConvertibleTop Control unit (911), Out Side Mirror Adjustment, Memory Control Unit
6Directio Indicator Lights, Power Windows, Convertible Top (Boxster)
7Brake Light, Cruise Control
8Central Locking/Alarm System Control Unit, Engine Electronics Control Unit, Tiptronic Control Unit
9ABS/ASR/PSM Control Unit
10Instrument Cluster, Diagnosis, Headlight Beam Adjustment

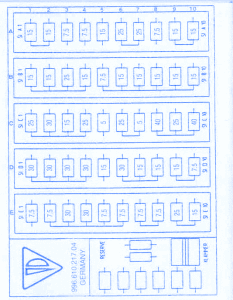

Porsche Boxster-Cayman 2001 Fuse Panel/Board – Fuse Symbol Map
