Porsche Cerbera 4.5 2004 Main Fuse Box/Block Circuit Breaker Diagram

Porsche Cerbera 4.5 2004 Main Fuse Box/Block Circuit Breaker Diagram



FuseDescriptionAmps
1Dip Beam and Dim Dip20A
2Sidelights and Rear Fog Light15A
3Engine Fan 130A
4--
5--
6Horn10A
7Master Ignition20A
8Main Beam20A
9--
10Starter Solenoid30A
11--
12--
13Heated Rear Screen25A
14--
15Engine Fan 230A
16Hazard Lights10A
17--
18Door Lock ECU & Drivers Window20A
19--
20Boot Light, Courtesy Light & Cigarette Lighter15A
21Passenger Lock & Boot Lock10A
22--
23Drivers Lock & Passenger Window20A
24Gauges, Mirrors, Radio & Dim Dip10A
25Indicators, Reserve & Brake Lights15A
26--
27--
28Heating & Ventilation System25A
29--
30Ignition Coils20A
31Wiping & Steering Wheel ECU20A
32Immobiliser10A
33Injector & Engine ECU15A
34Fuel Pump, Lambda Heaters & Purge Can20A
35Lambdas15A/7.5A
36Alarm15A
37Engine ECU Backup & Steering Wheel ECU Suppression10A
38--
39--
40--
41--

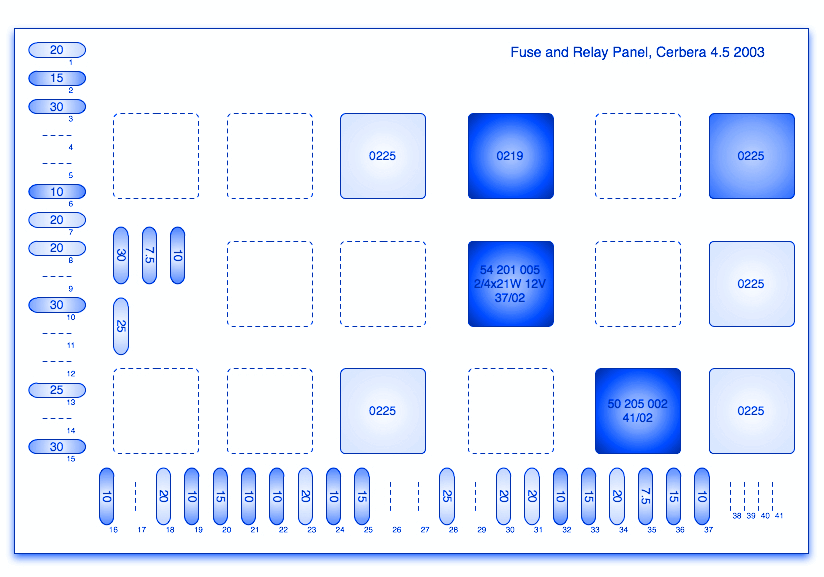

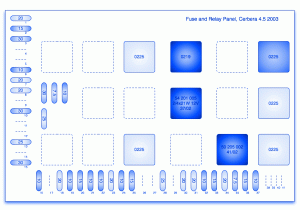

Porsche Cerbera 4.5 2004 Main Fuse Panel/Board – Fuse Symbol Map
