Puegeot 407 GT HDI 2.7 2006 Fuse Box/Block Circuit Breaker Diagram
| Fuse Symbol | Amps | Fuse Map |
|---|---|---|
| F1 | 20A | Engine Control Module (ECM), Engine Coolant Blower Motor |
| F2 | 15A | Horn |
| F3 | 10A | Rear Screen Wash/Wipe System, Windscreen Wash/Wipe System |
| F4 | 20A | Headlamp Wash/Wipe System |
| F5 | 15A | Fuel Pump (FP), Exhaust Gas Recirculation (EGR) Solenoid |
| F6 | 10A | Automatic Transmission (AT), AC Control Module- Multifunction Control Module 1 |
| F7 | 10A | Engine Coolant Low Warning Lamp switch, ABS/ESP Control module, Power Steering Pump |
| F8 | 15A | Starter Motor |
| F9 | 10A | Headlamp Assembly, Left, Headlamp Assembly Right |
| F10 | 30A | Engine Management |
| F11 | 40A | Engine Coolant Blower Motors |
| F12 | 30A | Windscreen Wiper motor Relay |
| F13 | 40A | Multifunction Control module 1 |
| F14 | 30A | Secondary Air Injection (AIR) Pump |

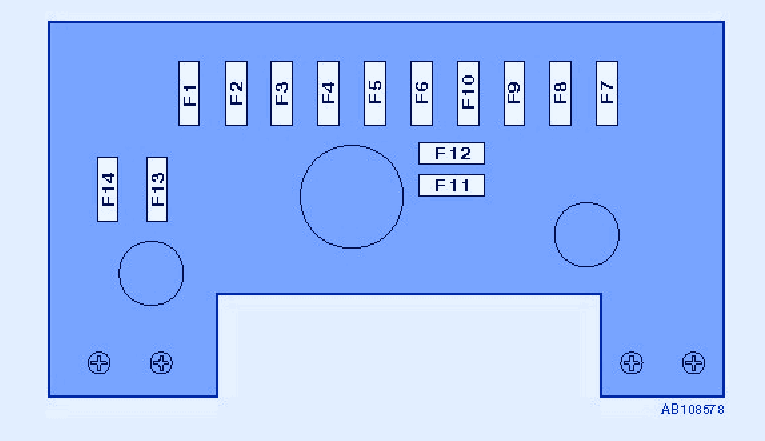

Puegeot 407 GT HDI 2.7 2006 Fuse Panel/Board – Fuse Symbol Map
