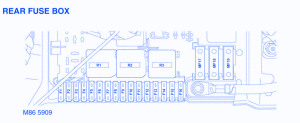

Range Rover 4.4l V8 2003 Fuse Box/Block Circuit Breaker Diagram

Range Rover 4.4l V8 2003 Fuse Box/Block Circuit Breaker Diagram



FuseRatingVohicloFunction
F120AAllFront Cigar Lighter, Rear Cigar Lighter, Front Accessory Socket
F225AAllRelay4.
F325AAllRelay2
F415AAllTrailer Pick-up
Range Rover 4.4l V8 F620AAllTrailer Pick-up
F720AAllRear Accessory Socket
F930AAllHeated Rear Window Relay
F1020AAllRear Screen Wiper Motor
F1120AAllSeat Heat Relay
F1215AAllRear Blower Motor Relay
F145AAllRF Receiver
F1525AAllFuel Pump Relay
F1610AAllTail Door Relay
Maxi-Fuse
MF1750AAllTrailer ECU
MF1850AAllAir Suspension Relay
MF1950AAllNot Used
Range Rover 4.4l V8

Range Rover 4.4l V8 2003 Fuse Panel/Board – Fuse Symbol Map
