Range Rover Fascia 2008 Main Fuse Box/Block Circuit Breaker Diagram

Range Rover Fascia 2008 Main Fuse Box/Block Circuit Breaker Diagram



Fuse No.RatingWire ColourFunction
1.20AN/OSunroof, Driver Seat Heater
2.20AS/UDrivers Front Door Window Lift
3.20AS/RPassengers Front Door Window Lift
4.20AP/NFront and Rear Cigar Lighter Relay Rear Wiper E.C.U
5.10APInterior Lamps, Boot Lamp, Interior Lamp Delay Unit, Map Lamps, trip Computer Memory, Radio Station Memory, Clock Memory, Hot Restart E.C.U
6.20AP/OBurglar Alarm E.C.U, Central Locking E.C.U
7.15AR/OR.H Number Plate Lamp, R.H side, Tail Lamps, Trailer Plug
8.15AR/BCigar Lighter Illumination L.H Number Plate Lamp, Side Lamp Warning Lamp, Glovebox Lamp, Trailer Plug, Fascia Illumination, L.H Side Rear Lamps
9.20AS/OL.H Rear window Lift
10.20AS/GR.H Rear Window Lift
11.10ALG/SABS Over Voltage Protection Relay
12.10AW/REFI Relay, EFI E.C.U

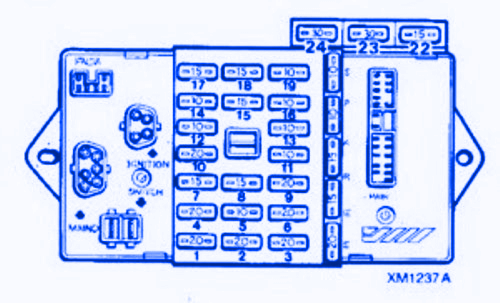

Range Rover Fascia 2008 Main Fuse Panel/Board – Fuse Symbol Map
