Range Rover Liama 1985 Fuse Box/Block Circuit Breaker Diagram
| Fuse No. | Colour | Rating | Function |
|---|---|---|---|
| A1 | Red | 10A | LH Low Beam |
| A2 | Red | 10A | LH High Beam, Auxilliary Lamp Relay |
| A3 | Tan | 5A | LH Parking Lamps, Radio Ill, Trailer Pickup |
| A4 | - | - | Not Used |
| A5 | Yellow | 20A | Direction Ind, Resistor, Heated Jets, Thermo, Heated Front Screen Timer, Air Con, Low Coolant, Low Oil, Speed Transducer, Interior Lamp Delay, Reverse Lights, Stop Lights, Audible Warning Unit |
| A6 | Red | 10A | Fog Lamps (From Low Beam) |
| A7 | Tan | 5A | RH Parking Lamps, Rheastat Controlled Instrument/Switch Illumination, Trailer Pickup |
| A8 | Red | 10A | RH High Beam |
| A9 | Red | 10A | RH Low Beam |
| B1 | Yellow | 20A | Front Wash/Wipe, Seat Relays, Window Lift Relays, Antenna Amplifier |
| B2 | Yellow | 20A | Interior Light, Clock, Underhood Ill., Elec Seat Relays, radio, Door Lamps, Key In Switch, Audible Warning |
| B3 | Yellow | 20A | Hazard Switch, Alarm, Headlamp Dip/Flash, Horns |
| B4 | Yellow | 20A | Cigar Lighters |
| B5 | Yellow | 20A | Sunroof Motor |
| B6 | Yellow | 20A | Headlamp Wash |
| B7 | Tan | 5A | Air Conditioning Compressor Clutch |
| B8 | Yellow | 20A | Air Conditioning/Radiator Cooling Fan |
| B9 | Yellow | 20A | Air Conditioning/Radiator Cooling Fan |
| C1 | Green | 30A | Heated Rear Screen (Voltage Switch Controlled) |
| C2 | Green | 30A | Window Lift Rear |
| C3 | Red | 10A | Rear Wash Wipe Motor, Heated Rear Screen Relay, Mirror Heaters |
| C4 | Red | 10A | Fuel Pump |
| C5 | Red | 10A | Mirror Motors, Cruise Control |
| C6 | - | - | Not Used |
| C7 | Blue | 15A | Central Locking |
| C8 | Green | 30A | Window Lift Front |
| C9 | Green | 30A | Heater/Air Conditioning Motor |

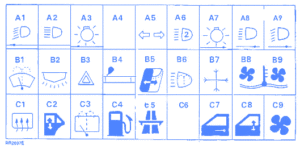

Range Rover Liama 1985 Fuse Panel/Board – Fuse Symbol Map
