Range Rover Zarna 2002 Front Engine Fuse Box/Block Circuit Breaker Diagram
| LINK | RATING | FUNCTION |
|---|---|---|
| FL1 | 40A | Lighting Switch, Fuse2 & Fuse12 Passenger Fusebox, Front Fog lamp Relay |
| FL2 | 60A | ABS Modulator |
| FL3 | 30A | Window Lift Relay, Fuse6 Passenger Fusebox, Fuse23 Satelite Fusebox |
| FL4 | 40A | Ignition Switch |
| FL5 | 40A | Ignition Switch |
| FL6 | 60A | Fuse Link 3,4 & 5, Fuse 5,6 & 7 Under Bonnet Fusebox |

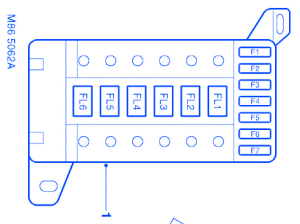

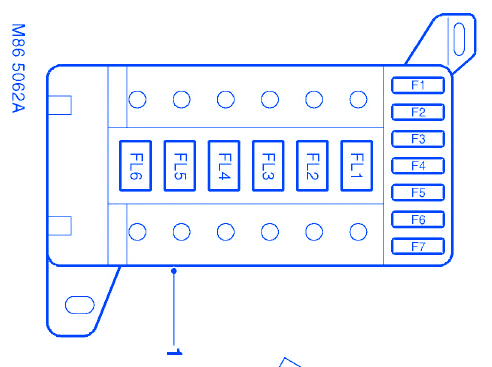

Range Rover Zarna 2002 Front Engine Fuse Panel/Board – Fuse Symbol Map
