Renault Espace 2002 Relay Fuse Box / Block Circuit Breaker Diagram

Categories:

Fuse Box Diagram, Renault

by Pad Rust

Renault Espace 2002 Relay Fuse Box / Block Circuit Breaker Diagram
Renault Espace 2002 Relay Fuse Box / Block Circuit Breaker Diagram

NumberAmpere rating [A]Description
F32——
F33——
F3415Driver’s electric seat feed
F3520Driver’s and passenger’s heated seats
F3620Driver’s electric seat
F3720Passenger’s electric seat

No.Relay Map
R3Seat supply
R4Sidelight for daytime running lights
R5Dipped beam headlights for daytime running lights
R6Headlight washers pump
R7Brake lights cut-off

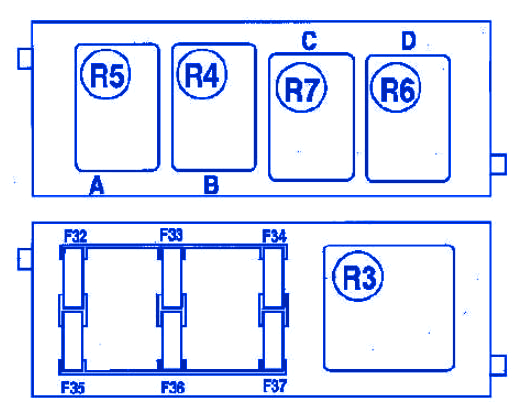

Renault Espace 2002 Relay Fuse Panel / Board – Fuse Symbol Map
