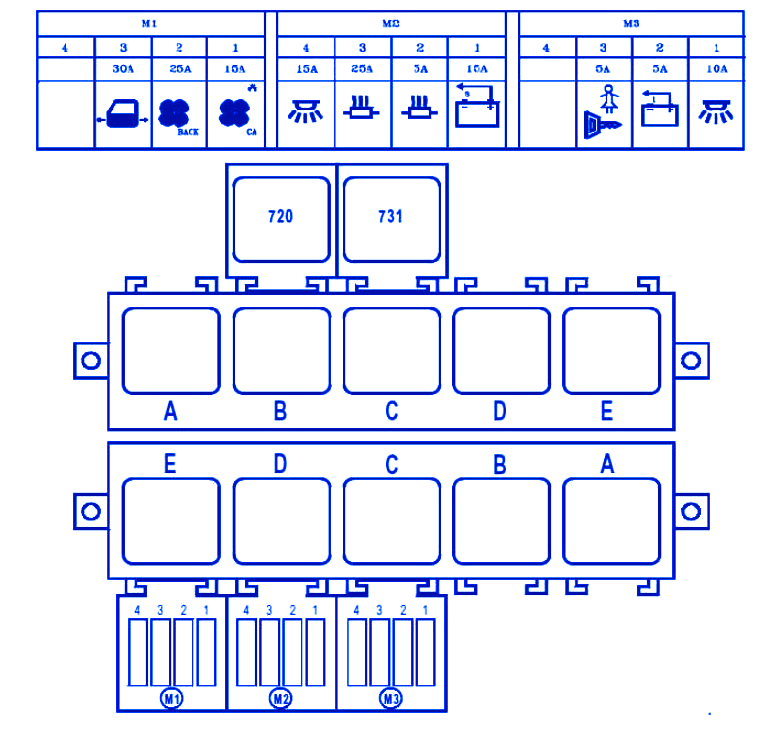

Renault Master 1997 Passenger Compartment Fuse Box / Block Circuit Breaker Diagram
Renault Master 1997 Passenger Compartment Fuse Box / Block Circuit Breaker Diagram
Fuse Ampere riting [A] Description Module 1 (M1) F1 15 Condenser relay F2 25 + After ignition relay 2 F3 30 Electric door power after battery cut-off F4 — — Module 2 (M2) F1 15 Battery cut-off relay F2 5 + Battery feed before battery cut-off heating control F3 25 + Battery feed before battery cut-off heating output F4 15 Operating light and footwell signal + battery feed after battery cut-off Module 3 (M3) F1 10 + After ignition relay 2 supply (299-752) – electric doors – passenger lighting – central door locking F2 5 Emergency stop – switch open F3 5 Rear door locks + after ignition F4 — —
Symbol Relay Map Relay 720 Air conditioning cut-off Top row A + After ignition 1 B Fog lights C Passenger compartment fan assembly speed 4 D Independent heating cut-off E Heated rear screen and door mirrors Bottom row A Battery cut-out B Battery cut-out locking C + After ignition 2 D Evaporator E Condenser
Renault Master 1997 Passenger Compartment Fuse Panel / Board – Fuse Symbol Map
