| Number | Ampere riting [A] | Description |
|---|---|---|
| R1 | — | — |
| R2 | — | — |
| R3 | — | — |
| R4 | 50A | Sequential gearbox electric pump unit |
| R5 | 50A | Injection central unit on K9K 764 engine |

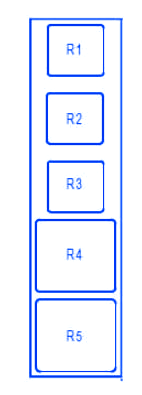

Renault Modus 2004 Optional Relay Board Fuse Panel / Board – Fuse Symbol Map
