| No. | Ampere riting [A] | Description Main fuse (mark 1) | ||
|---|---|---|---|---|
| — | 350A | Fuse inputs F2 to F8 feed on power supply fuse board – starter – alternator – supply to fuses marked 2 and 3 on protected battery unit | ||
| Fuse marked 2 (BLUE connector) | ||||
| A | 70A | Fuse inputs F17 and F18 feed passenger compartment fuse and relay unit – UPC | ||
| B | 60A | Electric power assisted steering system | ||
| Fuse marked 3 (GREEN connector) | ||||
| A | 70A | Fuse inputs F1, F3, F5 feed and accessories relays on passenger compartment fuse and relay unit | ||
| B | 60A | UPC | ||

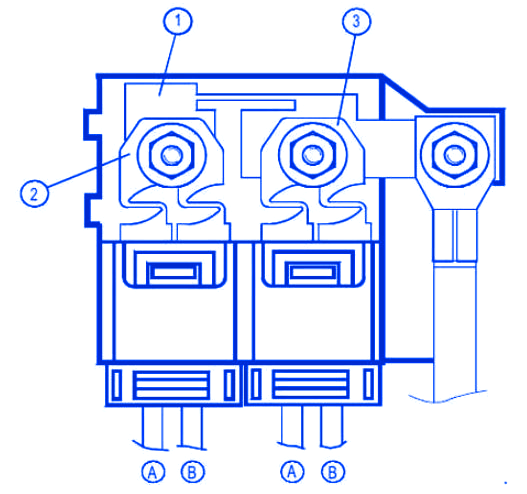

Renault Modus 2004 Protected Positive Battery Unit Fuse Panel / Board – Fuse Symbol Map
