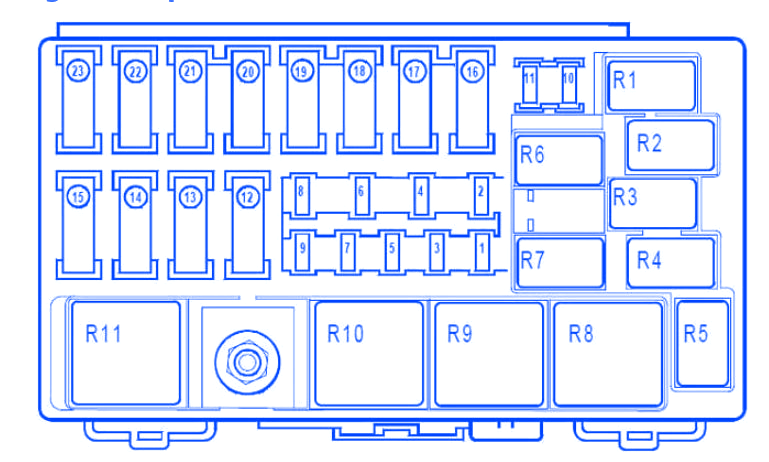

Renault Vel Satis In Engine Compartment Fuse Box / Block Circuit Breaker Diagram
Renault Vel Satis In Engine Compartment Fuse Box / Block Circuit Breaker Diagram
Number Ampere rating [A] Description FM1 7,5 Automatic gearbox FM2 10 Additional heater – Diesel heater control relay FM3 30 Injection relay FM4 5 DPO: Automatic transmission 15 SU1: Automatic transmission FM5 30 Additional heater – Diesel heater relay FM6 10 Injection computer – Diesel solenoid valve – Diesel heater FM7 — — FM8 — — FM9 20 Fan unit low speed Air conditioning clutch and variable displacement actuator FM10 30 ABS/ESP computer FM11 30 Multifunction horn FM12 70 Diesel pre-heating FM13 70 Thermoplungers via relay R11 FM14 70 Thermoplunger via relay R1 and thermoplunger via relay R5 FM15 60 Fan unit high and low speed with air conditioning FM16 40 Headlight washers – De-icing relay FM17 40 ABS/ESP computer and ABS vacuum FM18 70 Passenger compartment No. 1 FM19 70 Passenger compartment FM20 60 Passenger compartment No. 3 FM21 60 Consumer cut-off fuse supply passenger compartment No. 2 FM22 80 Windscreen de-icing FM23 60 Windscreen wiper and electric parking brake
Renault Vel Satis In Engine Compartment Fuse Panel / Board – Fuse Symbol Map
Symbol Relay Map Relay R1 F4R – G9T – P9X: Additional heater 1 R2 F4R – G9T: Low speed fan unit with heating V4Y – P9X: Fan unit with air conditioning R3 — R4 — R5 F4R – G9T – P9X: Additional heater 3 R6 F4R – G9T: Fuel pump V4Y: Injection R7 F4R – G9T – P9X: Diesel heater V4Y: Stepper motor safety R8 Injection locking R9 F4R – G9T: Low speed fan unit with air conditioning V4Y – P9X: Fan unit with air conditioning R10 Fan unit with air conditioning R11 F4R – G9T – P9X: Additional heater 2
Renault Vel Satis In Engine Compartment Fuse Panel / Board – Fuse Symbol Map
