Saturn Ion 2005 Fuse Box/Block Circuit Breaker Diagram
| SYMBOL | DESCRIPTION | AMPS |
|---|---|---|
| MINI FUSES | ||
| 1 | TCM | 10A |
| 2 | - | - |
| 3 | - | - |
| 4 | RH HDLP | 15A |
| 5 | A/C | 10A |
| 6 | - | - |
| 7 | - | - |
| 8 | ABS | 10A |
| 9 | ECM/ETC | 15A |
| 10 | EMISS | 15A |
| 11 | IGN | 10A |
| 12 | - | - |
| 13 | TRANS2 | 10A |
| 14 | TRANS1 | 10A |
| 15 | BACK UP | 10A |
| 16 | INJECTORS | 10A |
| 17 | FOG LP | 10A |
| 18 | LH HDLP | 15A |
| 19 | WIPER | 25A |
| 20 | HORN | 10A |
| 21 | RADIO | 20A |
| 22 | ABS | 20A |
| 23 | RR DEFOG | 30A |
| MICRO RELAYS | ||
| 24 | A/C CLUTCH | |
| 25 | HORN | |
| 26 | FOG LAMP | |
| 27 | AIR SOLENOID | |
| 29 | POWERTRAIN | |
| MINI RELAYS | ||
| 26 | RUNK/CRANK(IGN 1) | |
| 30 | COOLING FAN | |
| 31 | ECM CONT | |
| 32 | WIPER 1 | |
| 33 | WIPER 2 | |
| 34 | REAR DEFOG | |
| DIODES | ||
| 35 | A/C DIODE | |
| 36 | - | - |
| 37 | WIPER DIODE | |
| J-CASE FUSES | ||
| 38 | RUNK/CRANK | 30A |
| 39 | IP BATT 1 | 30A |
| 40 | ABS | 40A |
| 41 | IP BATT 2 | 40A |
| 42 | - | - |
| 43 | EPS | 60A |
| 44 | AIR PUMP RLY | 50A |
| 45 | COOLING FAN | 30A |
| 46 | CRANK | 30A |
| 47 | IP BATT 1A | 30A |
| 48 | RUN (IGN3) | 30A |
| 49 | FUSE PULLER | |

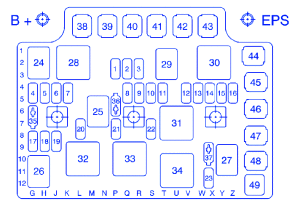

Saturn Ion 2005 Fuse Panel/Board – Fuse Symbol Map
