Saturn SC-1 1999 Fuse Box/Block Circuit Breaker Diagram

Saturn SC-1 1999 Fuse Box/Block Circuit Breaker Diagram



NO.FUSE(CB)COLORAMPSYSTEM
1PWR CONVCEGreen30APower Window, Power Sunroof, Rear Wiper (Wagon)
2IGN 3Green30AHeater AirConditioning, Blower MOtor, Air Recirculation Door, Rear Defogger, Antilock Brakes, Power Windows, Air Conditioning, Cruise Control, StarterSolenoid, DRL Relay, Generator
3Spare---
4Spare---
5IGN 4Green30ATransaxle Shift Program Switch, Turn Signals, Brake Transaxle Shift Interlock, Backup Lamps, Linear EGR Solenoid, EVAP Canister Purge Soenoid, Electronic Ignition System, I/P Cluster Telltales, Lamp and Gauges, Powertrain Control Module, Fuel Injectors, Radio, Windshield Wiper/Washer SIR, DRL Module, Chime, Remote Keyless Entry, Heated Oxygen Sensor, Coolant Level Switch
6IP BATGreen30AChime, WAgon Hatch Ajar Fuel System, Dome Lamps, Luggage, Compartment Lamp, Outside Electric Mirror, Map Lamps, Radio/Clock Memory, Door Locks, Cigar Lighter, Automatic,Transaxle Actuators, Remote Keyless Entry, Decklid/Liftgate Release
7COOLFANGreen30AEngine Cooling Fan
8ABSGreen30AAntilock Brakes

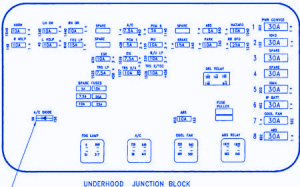

Saturn SC-1 1999 Fuse Panel/Board – Fuse Symbol Map
