Saturn Sky 2008 Fuse Box/Block Circuit Breaker Diagram

Saturn Sky 2008 Fuse Box/Block Circuit Breaker Diagram



FusesUsage
1Fuse Puller
2Empty
3Empty
4Empty
5Empty
6Amplifier
7Cluster
8Ignition Switch, Passkey III+
9Stoplamp
10Climate Control System, Passkey III+
11Empty
12Spare
13Airbag
14Spare
15Wiper
16Climate Control System, Automatic Occupant Sensing Module, Clutch Switch, Crank Relay, Instrument Panel Cluster
17Empty
18Empty
19Electric Power Steering, Steering Wheel Controls
20Spare
21Spare
22Empty
23Radio
24Sensing and Diagnostic Module
25Engine Control Module, Transmission Control Module
26Door Locks
27Interior Lamps
28Steering Wheel Control Backlighting
29Power Windows
30Climate Control System
31Empty
32Retained Accessory Power

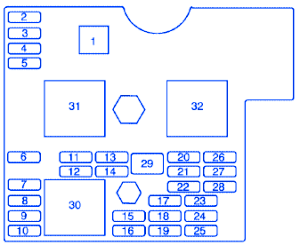

Saturn Sky 2008 Fuse Panel/Board – Fuse Symbol Map
