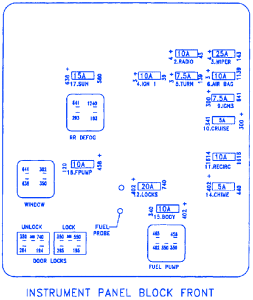

Saturn SW2 2002 Instrument Fuse Box/Block Circuit Breaker Diagram

Saturn SW2 2002 Instrument Fuse Box/Block Circuit Breaker Diagram



FUSE SYMBOLFUSE MAPAMPS
2RADIO10A
3WIPER25A
4IGN 110A
5TURN7.5A
6AIR BAG10A
9IGN 37.5A
10CRUISE5A
11RECIRC10A
12LOCKS20A
14CHIME5A
15BODY10A
17SUN15A
18FPUMP10A

Saturn SW2 2002 Instrument Fuse Panel/Board – Fuse Symbol Map
