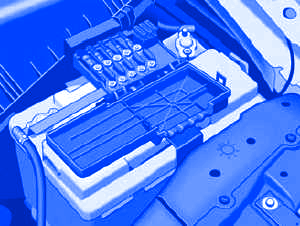

Seat Ibiza 2002 Engine Compartment Fuse Box / Block Circuit Breaker
Number Component Ampers 1 Alternator/Starter motor 175 2 Power supply voltage distributor inside vehicle 110 3 Power assisted steering pump 50 4 SLP (petrol)/Preheating spark plugs (diesel) 50 5 Electroblower clima heater/fen 40 6 ABS unit 40 7 ABS unit 25 8 Electroblower clima heater/fen 30 9 ABS unit 10 10 Cable control unit 5 11 Clima fan 5 12 — — 13 Jatco unit for automatic gearbox 5 14 — — 15 — — 16 — —
Number Component Ampers Position In Engine Compartment: Side Box B1 Alternator (< 140W) 150 Alternator (> 140W) 200 C1 Power steering 80 D1 PTCs (Supplementary electrical heating using air) 100 E1 Ventilator (> 500W) 80 Ventilator (< 500W) 50 F1 Multi-terminal voltage supply “30”. Internal fuse box 100 G1 Trailer fuse voltage supply in internal fuse box 50 H1 — —
Seat Ibiza 2002 Engine Compartment Fuse Panel / Board – Fuse Symbol Map
