| No. | Fused function | A |
|---|---|---|

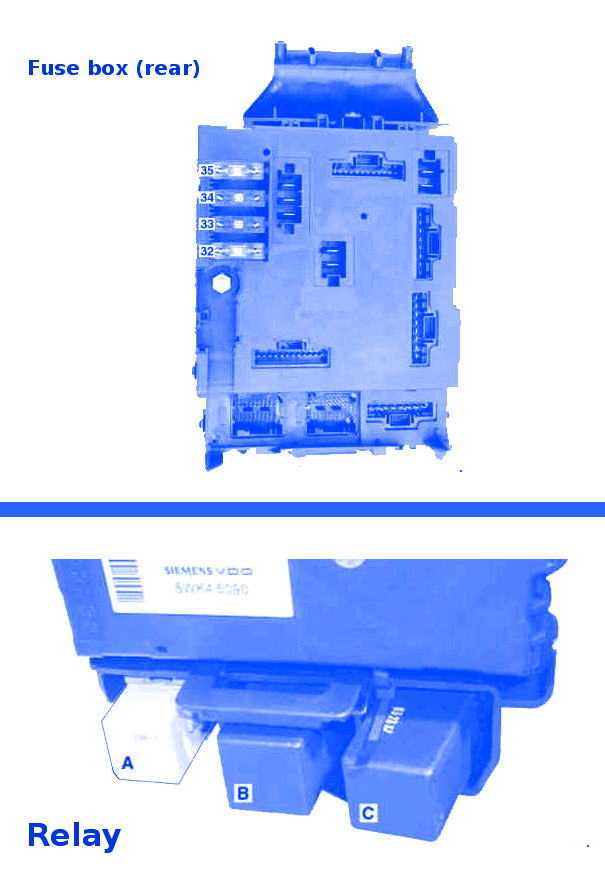

| Fuse box (rear) | ||
| 32 | Secondary air injection pump (emission control) | 30 |
| 33 | Ignition switch | 50 |
| 34 | ESP control unit (N47-5) | 50 |
| 35 | Steering assist control unit (N68) | 30 |
| No. | Relay |
|---|---|
| Relay | |
| A | Fog lamp relay |
| B | Left heated seat control unit |
| C | Right heated seat control unit |
Smart City Coupe 2002 Relay Fuse Panel / Board – Fuse Symbol Map
