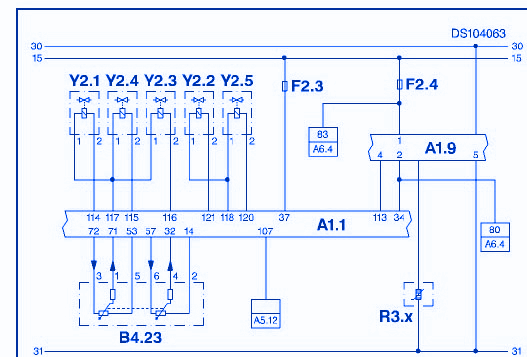

Ssangyong Rexton RX 2.7 SX7 DIESEL 2007 Electrical Circuit Wiring Diagram
| SYMBOL | DESCRIPTION |
|---|---|
| A1.1 | Engine Control Unit |
| A1.9 | Glow Control Unit |
| A5.12 | A/C Control Unit |
| A6.4 | Immobilizer Control Unit |
| B4.23 | Accelerator Pedal Pos. Sensor |
| F2.3 | Fuse 3 (Fuse Box 2) |
| F2.4 | Fuse 4 (Fuse Box 2) |
| R3.x | Glow Plugs |
| Y2.1 | Injector Cylinder 1 |
| Y2.2 | Injector Cylinder 2 |
| Y2.3 | Injector Cylinder 4 |
| Y2.4 | Injector Cylinder 4 |
| Y2.5 | Injector Cylinder 5 |
Ssangyong Rexton RX 2.7 SX7 DIESEL 2007 Electrical Circuit Symbol Map
