Subaru Forester 1998 Under The Hood Fuse Box/Block Circuit Breaker Diagram
| SYMBOL | AMPS | DESCRIPTION |
|---|---|---|
| 22 | 15A | Hazard Warning Light |
| 23 | 20A | Lighting Switch |
| 24 | 15A | Headlight (LH) |
| 25 | 10A | Clock, Room Light |
| 26 | 15A | Headlight (RH) |
| (OP) | 20A | A/C (Sub Fan) |
| (OP) | 10A | A/C |
| spare | 20A | - |
| SPARE | 15A | - |
| SPARE | 10A | - |

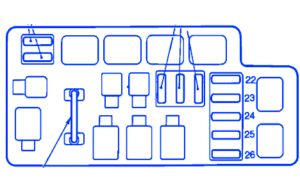

Subaru Forester 1998 Under The Hood Fuse Panel/Board – Fuse Symbol Map
