Subaru Legacy 1993 Ignition Fuse Box/Block Circuit Breaker Diagram
| FUSE SYMBOL | AMPS | FUSE MAP |
|---|---|---|
| 1. | 15A | Back-up Light, Turn Signal Light |
| 2. | 20A | Wind Shield Wiper and Washer |
| 3. | 15A | Cigarette Light, Remote Control Rear View Mirrors |
| 4. | - | Empty |
| 5. | 10A | Tail Light, Clearance Light |
| 6. | - | Empty |
| 7. | 20A | Rear Window Defogger |
| 8. | 10A | Cruise Control, ABS System |
| 9. | 10A | Illumination Brightness Control |
| 10. | 10A | Hight Control |
| 11. | 20A | Power Door Lock |
| 12. | 20A | Stop Light, Horn |
| 13. | 20A | Main Fan |
| 14. | 10A | MPFI Unit, AT Unit |
| 15. | 10A | Meter |
| 16. | 15A | Ignition System |
| 17. | 15A | Radio |
| 18. | - | Empty |
| 19. | 20A | ABS Solenoid |
| 20. | 15A | Heater Fan |
| 21. | 15A | Heater Fan |

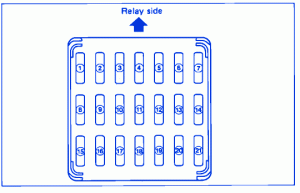

Subaru Legacy 1993 Ignition Fuse Panel/Board – Fuse Symbol Map
