Subaru RSK 2001 Under Dash Fuse Box/Block Circuit Breaker Diagram
| Fuse/Relay Symbol | Fuse/Relay Map |
|---|---|
| F1 | Indicators, Reversing Lamps |
| F2 | Windscreen Wipers, Windscreen Washers |
| F3 | Cigarette Lighter, Door Mirrors |
| F4 | Front Fog Lamps |
| F5 | Side Lamps, Tail Lamps |
| F6 | Spare |
| F7 | Heated Rear Window |
| F8 | Airbag |
| F9 | Instrument Illumination, Switch Illumination, Rear Fog Lamp Relay, Front Fog Lamps Relay |
| F10 | Spare |
| F11 | Central Locking |
| F12 | Stop Lamps, Horn |
| F13 | Engine Coolant Blower Motor |
| F14 | Transmission Control Module, Engine Control Module |
| F15 | Instrument Panel, Heater Blower, Airbag Warning Lamp, Data Link Connector, Headlamp Beam Adjustment |
| F16 | Ignition Coils, Engine Control |
| F17 | Audio Unit |
| F18 | ABS Control Module, Cruise Control System |
| F19 | ABS |
| F20 | Heater blower |
| F21 | Heater Blower |
| 1 | Heated Rear Window Relay |
| 2 | Tail Lamps Relay |
| 3 | Heater Blower Relay |

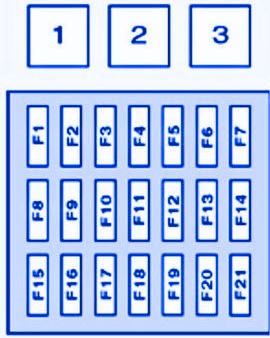

Subaru RSK 2001 Under Dash Fuse Panel/Board – Fuse Symbol Map
