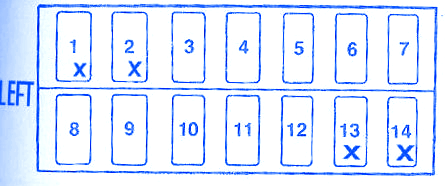

Suzuki Geo Tracker 1996 Fuse Box/Block Circuit Breaker Diagram

Suzuki Geo Tracker 1996 Fuse Box/Block Circuit Breaker Diagram



FuseUsage
1Empty
2Empty
3Dome Lamp, Sidemarker Lamps, Parking Lamps, License Plate Lamp, Instrument Panel Illumination
4Stoplamp, Horn
5Hazard Lamps
6Door Lock (Option)
7Lighter, Radio
8Ignition System, Warning and Indicator Lights, Gages, Four-Wheel Drive System (Option)
9Turn Signal Flasher, Back-Up Lamps
10Wiper/Washer
11Rear Defogger
12Heater
13Empty
14Empty

Suzuki Geo Tracker 1996 Fuse Panel/Board – Fuse Symbol Map
