Suzuki Samurai 1990 Fuse Box/Block Circuit Breaker Diagram
| FUSE MAP | AMPS |
|---|---|
| Head Light (R) | 10A |
| Head Light (L) | 10A |
| Interior Light | 15A |
| Stop Light | 15A |
| Hazard Light | 15A |
| Radio/Cig | 20A |
| Mein Relay | 15A |
| Gen./Coil/Fuel | 15A |
| Turn/Back Up | 10A |
| Wiper/Washer | 15A |
| Rear Defog. | 15A |
| Heater | 20A |
| Diag | - |

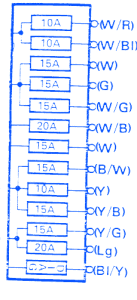

Suzuki Samurai 1990 Fuse Panel/Board – Fuse Symbol Map
