Suzuki SX4 2007 Fuse Box/Block Circuit Breaker Diagram
| FUSE | COLOR | AMPS | PROTECTED CIRCUIT |
|---|---|---|---|
| 1 | BLACK | 80A | All Electric Load |
| 2 | RED | 50A | Power Window, Ignition, Wiper, Starter |
| 3 | RED | 50A | Tail Light/Rear Defogger/Door Lock/Hazard/Horn/Dome |
| 4 | - | - | Blank |
| 5 | - | - | Blank |
| 6 | BLUE | 15A | Headlight (Right) Fuse |
| 7 | BLUE | 15A | headlight (Left) Fuse |
| 8 | YELLOW | 20A | Front Fog Light Fuse |
| 9 | YELLOW | 60A | Power Steering Control Module fuse |
| 10 | GREEN | 40A | ABS Control Module Fuse |
| 11 | PINK | 30A | Radiator Fan Fuse |
| 12 | PINK | 30A | ABS Control Module Fuse |
| 13 | PINK | 30A | Starting Motor Fuse |
| 14 | RED | 50A | Ignition Switch Fuse |
| 15 | PINK | 30A | Blower Fan Fuse |
| 16 | YELLOW | 20A | Air Compressor Fuse |
| 17 | BLUE | 15A | Throttle Motor Fuse |
| 18 | BLUE | 15A | Automatic Transaxle Fuse |
| 19 | BLUE | 15A | Fuel Injection Fuse |
| 20 | - | - | Automatic Transaxle Relay |
| 21 | - | - | Air Compressor Relay |
| 22 | - | - | Fuel Pump Relay |
| 23 | - | - | Condensor Fan Relay |
| 24 | - | - | Front Fog Light Relay |
| 25 | - | - | Throttle Motor Relay |
| 26 | - | - | FI MAIN |
| 27 | - | - | Starting Motor Relay |
| 28 | - | - | Radiator Fan Relay |
| 29 | - | - | Radiator Fan Relay 2 |
| 30 | - | - | Radiator Fan Relay 3 |

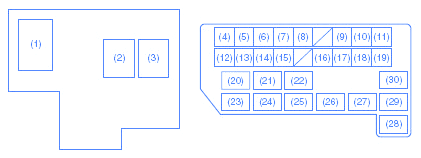

Suzuki SX4 2007 Fuse Panel/Board – Fuse Symbol Map
