Tata Bolt 2015 Engine compartment Fuse Box / Block Circuit Breaker
Fuse Function Ampere rating [A] 1 INTERIOR F/B 2 IGNITION 60 2 ABS 40 3 GLOW PLUG 60 4 COOLING FAN HIGH SPEED 40 5 EPAS 60 6 — — 7 INTERIOR F/B 1 BATTERY 60 8 UNDER BONNET F/R BOX 60 9 — — 10 IGNITION LOAD 60 11 — — 12 COMPRESSOR 10 13 STARTER SOLENOID 20 14 ABS ECU 25 15 TCU AMT 15 16 HORN HIGH /LOW TONE 15 17 FRONT FOG 10 18 EMS BATTERY 10 19 AMT HYDRAULIC PUMP 30 20 FUEL PUMP 20
Fuse Function Ampere rating [A] 21 BRAKE LAMP 10 22 RELAY COIL 5 23 — — 24 FRONT WIPER MOTOR 20 25 ABS 5 26 WASHER MOTOR 10 27 TCU AMT 10 28 REVERSE & BRAKE LAMP 10 29 REAR WIPER 10 38 EMS ECU (DIESEL) 20 39 EMS ECU (COMMON) 15 40 EMS ECU (DIESEL) 10 EMS ECU (PETROL) 20 41 — — 42 HEAD LAMP LOW 15 43 EMS IGN 10 44 COOLING FAN LOW SPEED 20 45 — — 46 HEAD LAMP LOW 15

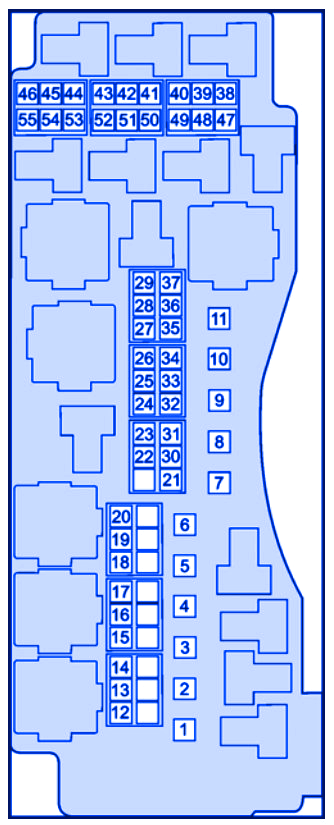

Tata Bolt 2015 Engine compartment Fuse Panel / Board – Fuse Symbol Map
