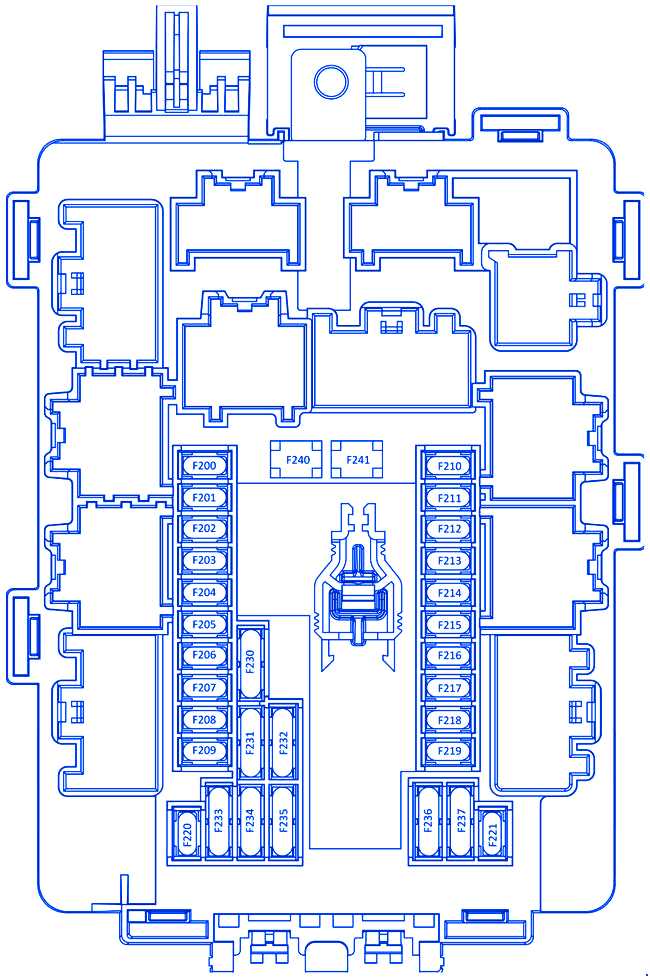

Tesla Model S 2015 Passenger Compartment Fuse Box / Block Circuit Breaker

Tesla Model S 2015 Passenger Compartment Fuse Box / Block Circuit Breaker
Tesla Model S 2015 Passenger Compartment Fuse Box / Block Circuit Breaker

NumberAmpere ratting [A]Protected circuit
F2005Memory Seat Module
F20125Window Lift Motor, Left Rear
F2021512V Accessory
F203
F20425Window Lift Motor, Right Front
F20525Window Lift Motor, Left Front
F20625Sunroof
F2071512V Accessory Outlet
F208
F209
F21030Power Liftgate
F21125Window Lift Motor, Right Rear
F21230Electric Park Brake (primary)
F21320Electric Park Brake (redundant)
F214
F21510Steering Wheel Heater
F216
F21720Premium Audio Amplifier
F21820Base Audio Amplifier
F20195Glove Box Light, Diagnostics
F2205Brake Pedal Switch
F2215Battery Management System

Tesla Model S 2015 Passenger Compartment Fuse Panel / Board – Fuse Symbol Map

NumberAmpere ratting [A]Protected circuit
F230 15Seat Heater, Second Row, Right
15
F231 15Seat Heater, Second Row, Left
15Seat Heater, Second Row, Middle
F232 15Seat Heater, First Row, Left
15Seat Heater, First Row, Right
F233 10Door Controls, Left, Door Handle Left Front
10Door Controls, Right, Door Handle, Right Front
F234 5Door Handle, Left Rear
5Door Handle, Right Rear
F235 10Gateway / Center Display
10Charging Systems
F236 5Steering Angle / Column
5Radio, Vanity Lights, Rear View Mirror
F237 5Instrument Cluster
5iBooster
F24030Seat Motors, Right Front
F24130Seat Motors, Left Front

Tesla Model S 2015 Passenger Compartment Fuse Panel / Board – Fuse Symbol Map
