Toyota 4runner 1990 Relay Fuse Box/Block Circuit Breaker Diagram
| Fuses | AMP |
|---|---|
| 1.CHARGE | 7.5A |
| 2.EFI | 15A |
| 3.HAZ-HORN | 15A |
| 4.DOME | 15A |
| 5.HEAD(RH) | 10A |
| 6.HEAD(LH) | 10A |
| 7.- | - |
| 8.- | - |
| 9.ALT(FL) | 80A |
| 10.- | - |
| 11.AM1(FL) | 40A or 60A |
| 12.AM2(FL) | 30A |
| Relays | Relay Map |
|---|---|
| A. | Headlight Control Relay |
| B. | EFI Relay |
| C. | CMH Relay |

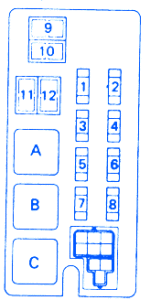

Toyota 4runner 1990 Relay Fuse Panel/Board – Fuse Symbol Map
