Toyota Corolla 1997 Kick Panel Fuse Box/Block Circuit Breaker Diagram
| No. | Fuse Symbol | Amps | Fuse Map |
|---|---|---|---|
| 1 | CIG & RADIO | 20A | Cigarette Lighter, Digital Clock Display, Air Conditioning System, Radio, Cassette Type Player, Power Rear View Mirrors |
| 2 | TAIL | 15A | Tail Lights, Parking Lights, License Plate Lights, Instrument Panel Lights |
| 3 | IGN | 10A | Multiport Fuel Injection System/Sequential Multiport Fuel Injection System, Electric Cooling Fans |
| 4 | ECU-B | 10A | Power Rear View Mirrors |
| 5 | DEF-I/UP | 7.5A | Multiport Fuel Injection System/Squential Multiport Fuel Injection System |
| 6 | STOP | 15A | Stop Lights, High-Mounted Stoplight, Anti-lock Brake System |

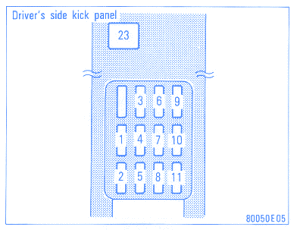

Toyota Corolla 1997 Kick Panel Fuse Panel/Board – Fuse Symbol Map
