Toyota Matrix 2001 Under Dash Fuse Box/Block Circuit Breaker Diagram

Toyota Matrix 2001 Under Dash Fuse Box/Block Circuit Breaker Diagram

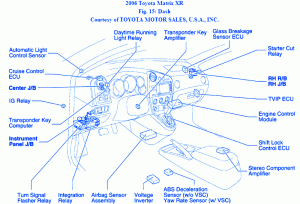

DESCRIPTION
- 1Automatic Light Control Sensor
- 2Cruise Control ECU
- 3Center J/ B
- 4IG Relay
-5Transponder Key Computer
- 6Instrument Panel J / B
- 7Turn Signal Flasher Relay
-8Integration Relay
- 9Daytime Running Light Relay
- 10transponder Key Amplifier
-11Airbag Sensor Assembly
-12Voltage Inverter
-13ABS Deceleration Sensor (w/o VSC) Yaw Rate Sensor (w/ VSC)
- 14Glass Breakage Sensor ECU
- 15RH R/B RH J/B
- 16Starter Cut Relay
- 17TVIP ECU
- 18Engine Control Module
- 19Shift Lock Control ECU
- 20Stereo Component Amplifier
