Toyota Prado Diesel 2003 Fuse Box/Block Circuit Breaker Diagram

Toyota Prado Diesel 2003 Fuse Box/Block Circuit Breaker Diagram



SYMBOLFUSE MAPAMPS
1AM140A
2POWER30A
3HTR40A
4DEF30A
5GAUGE10A
6--
7D/L25A
8TAIL10A
9--
10WIPER20A
11ECU-B7.5A
12FOG15A
13ACC15A
14ECU-IG7.5A
15OBD7.5A
16HAZ10A
17A/C7.5A
18--
19--
20STOP10A

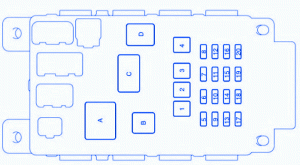

Toyota Prado Diesel 2003 Fuse Panel/Board – Fuse Symbol Map
