Toyota Solara 2002 Dash Fuse Box/Block Circuit Breaker Diagram

Toyota Solara 2002 Dash Fuse Box/Block Circuit Breaker Diagram



No.Fuse SymbolAmpsFuse Map
1CIG & RADIO20ACigarette Lighter, Digital Clock Display, Air Conditioning System, Radio, Cassette Type Player, Power Rear View Mirrors
2TAIL15ATail Lights, Parking Lights, License Plate Lights, Instrument Panel Lights
3IGN10AMultiport Fuel Injection System/Sequential Multiport Fuel Injection System, Electric Cooling Fans
4ECU-B10APower Rear View Mirrors
5DEF-I/UP7.5AMultiport Fuel Injection System/Squential Multiport Fuel Injection System
6STOP15AStop Lights, High-Mounted Stoplight, Anti-lock Brake System

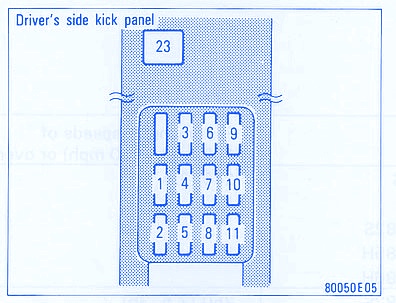

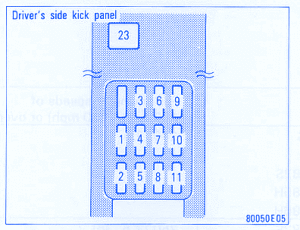

Toyota Solara 2002 Dash Fuse Panel/Board – Fuse Symbol Map
