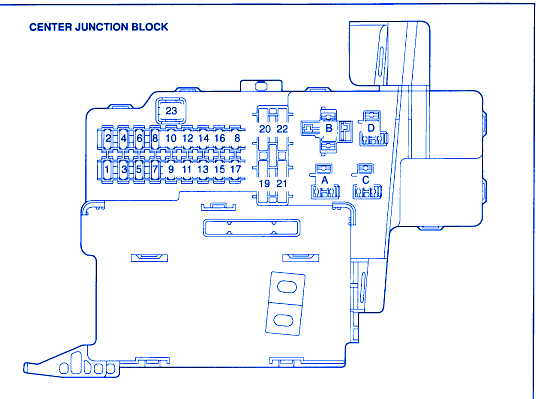

Toyota Sport Celica 2007 Central Junction Fuse Box/Block Circuit Breaker Diagram
| FUSE/RELAY SYMBOL | FUSE/RELAY MAP | AMPS |
|---|---|---|
| FUSES | ||
| 1 | CIG | 15A |
| 2 | S/ROOF | 15A |
| 3 | AM1 | 25A |
| 4 | FL P/W | 20A |
| 5 | DOOR | 20A |
| 6 | STOP | 10A |
| 7 | FR FOG | 15A |
| 8 | SRS-IG | 7.5A |
| 9 | OBD | 7.5A |
| 10 | WSHER | 15A |
| 11 | WIPER | 25A |
| 12 | RADIO | 15A |
| 13 | RR WIPER | 10A |
| 14 | TURN | 7.5A |
| 15 | - | - |
| 16 | HTR | 10A |
| 17 | FR R/W | 20A |
| 18 | TAIL | 10A |
| 19 | (MULTI-FUSE) ABS-IG, WARNING, FAN RLY, C/C ECU-IG | 5A |
| 20 | (MULTI-FUSE) DOME, MPX-B, ECU-B | 7.5A |
| 21 | (MULTI-FUSE) BODY ECU-IG, BK-UP LP, TENS RDC, DEF RLY | 5A |
| 22 | (MULTI-FUSE) ECU ACC, PANEL2, PANEL1 | 7.5A |
| 23 | DEF | 30A |
| RELAYS | ||
| A | - | - |
| B | IG1 Relay | |
| C | Defogger Relay | |
| D | Taillight Control Relay | |
Toyota Sport Celica 2007 Central Junction Fuse Panel/Board – Fuse Symbol Map
