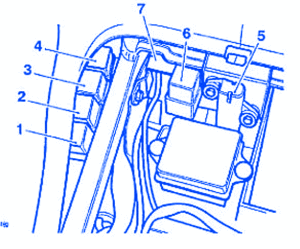

Triumph TT600 2005 Interior Fuse Box/Block Circuit Breaker Diagram
| Fuse No. | Circuits Protected | Fuse Rating (A) |
|---|---|---|
| 1 | Dip and Main Beam Headlights | 15A |
| 2 | Ignition Switch | 30A |
| 3 | Main Fuse | 30A |
| 4 | Horn, Indicators, Brake Lights, Instrument Memory, Diagnostics | 15A |
| 5 | Engine Kill Switch, Fuel Pump, ECM, Starter, | 10A |
| 6 | Engine Management System | 15A |
| 7 | Cooling Fan | 15A |
| 8 | Instrument Illumination | 5A |
| 9 | Lighting | 15A |
| 10 | Sidelights | 5A |
Triumph TT600 2005 Interior Fuse Panel/Board – Fuse Symbol Map
