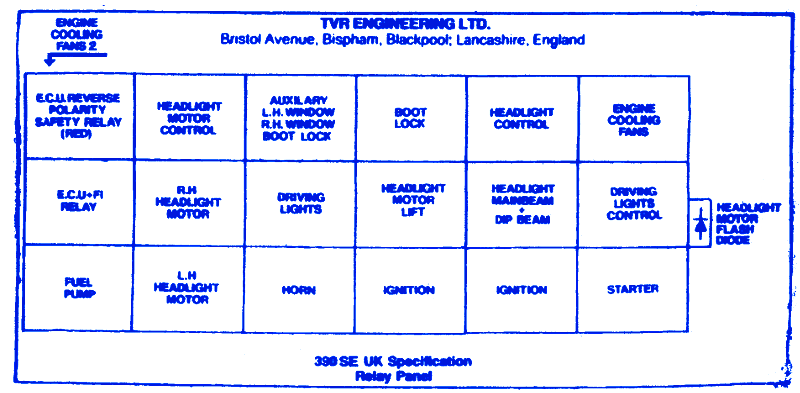

| Fuse/Relay Map | |
|---|---|
| -1 | E.C.U Reverse Polarity Safety Relay |
| -2 | Headlight Motor Control |
| -3 | Auxiliary L.H Window, R.H Window Boot Lock |
| -4 | Boot Lock |
| -5 | Headlight Control |
| -6 | Engine Cooling Fans |
| -7 | E.C.U FI Relay |
| -8 | R.H Headlight Motor |
| -9 | Driving Lights |
| -10 | Headlight Motor Lift |
| -11 | Headlight Main Beam Dip Beam |
| -12 | Driving Lights Control |
| -13 | Fuel Pump |
| -14 | L.H Headlight Motor |
| -15 | Horn |
| -16 | Ignition |
| -17 | Ignition |
| -18 | Starter |
| -19 | Headlight Motor flash Diode |
TVR 390SE 1986 Engineering Fuse Panel/Board – Fuse Symbol Map
