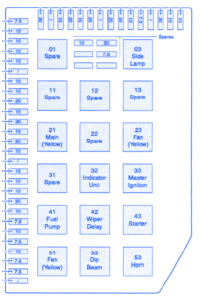

TVR Tamora 2007 Fuse Box/Block Circuit Breaker Diagram

TVR Tamora 2007 Fuse Box/Block Circuit Breaker Diagram



Fuse SymbolAmpsFuse Map
FUSE
110AHorn
210Sidelamp 12V to Desh
330AEngine Fan (1)
4-Spare
57.5ASide Lamps
615AHazard + Alarm Indicator
720ADriver's Door ECU- Window 12V
820APassanger ECU - Window 12V
9-Spare
1020ADip Beam
1115AFog 12V, Radio, Bootlamp, Courtesy Lamp
1220AIgnition Switch
1315AMain Beam
14-Spare
1530AEngine Fan
167.5ALoad Level Drive
1715AIgnition Coils
1810AIgnitiion to Dash + Door ECU
1915AFuel Injectors
2010ACigarette Lighter
21-Spare Battery Live
2210ADoor Lock (Pin25)
2310ADoor Lock (Pin26)
2420AWiper Motor
2510ASpeed Sense, Mirrors
2630AStarter Solenoid
2710AAlarm, Immobiliser IGN, Supply
2820AHeater
2910AAlarm + Immobiliser BATT, Supply
30-Spare IGN, Supply
3115AIndicator 12V
3210ADriver Door ECU 12V
3310APassenger Door ECU 12V
3420AFuel Pump
3510ARelay Ignition Supply (Fuse Box)
367.5ALambda Heaters
3710AHeadlamp 12V + Load Level
387.5ABrake + Reverse Lamps
3910ARadio + IGN, Accessories
407.5ASide Lamps
417.5ASide Lamps
42-Spare

SYMBOLDESCRIPTION
RELAY
01Spare
03Side Lamp
11Spare
12Spare
13Spare
21Main(Yellow)
22Spare
23Fan (Yellow)
31Spare
32Indicator Unit
33Master Ignition
41Fuel Pump
42Wiper Delay
43Starter
51Fan (Yellow)
52Dip Beam
53Horn

TVR Tamora 2007 Fuse Panel/Board – Fuse Symbol Map
