TVR Tuscan 3.6 2005 Fuse Box/Block Circuit Breaker Diagram
| Fuse Symbol | Amps | Fuse Map | ||
|---|---|---|---|---|
| FUSE | ||||
| 1 | 10A | Horn | ||
| 2 | 10 | Sidelamp 12V to Desh | ||
| 3 | 30A | Engine Fan (1) | ||
| 4 | - | Spare | ||
| 5 | 7.5A | Side Lamps | ||
| 6 | 15A | Hazard + Alarm Indicator | ||
| 7 | 20A | Driver's Door ECU- Window 12V | ||
| 8 | 20A | Passanger ECU - Window 12V | ||
| 9 | - | Spare | ||
| 10 | 20A | Dip Beam | ||
| 11 | 15A | Fog 12V, Radio, Bootlamp, Courtesy Lamp | ||
| 12 | 20A | Ignition Switch | ||
| 13 | 15A | Main Beam | ||
| 14 | - | Spare | ||
| 15 | 30A | Engine Fan | ||
| 16 | 7.5A | Load Level Drive | ||
| 17 | 15A | Ignition Coils | ||
| 18 | 10A | Ignitiion to Dash + Door ECU | ||
| 19 | 15A | Fuel Injectors | ||
| 20 | 10A | Cigarette Lighter | ||
| 21 | - | Spare Battery Live | ||
| 22 | 10A | Door Lock (Pin25) | ||
| 23 | 10A | Door Lock (Pin26) | ||
| 24 | 20A | Wiper Motor | ||
| 25 | 10A | Speed Sense, Mirrors | ||
| 26 | 30A | Starter Solenoid | ||
| 27 | 10A | Alarm, Immobiliser IGN, Supply | ||
| 28 | 20A | Heater | ||
| 29 | 10A | Alarm + Immobiliser BATT, Supply | ||
| 30 | - | Spare IGN, Supply | ||
| 31 | 15A | Indicator 12V | ||
| 32 | 10A | Driver Door ECU 12V | ||
| 33 | 10A | Passenger Door ECU 12V | ||
| 34 | 20A | Fuel Pump | ||
| 35 | 10A | Relay Ignition Supply (Fuse Box) | ||
| 36 | 7.5A | Lambda Heaters | ||
| 37 | 10A | Headlamp 12V + Load Level | ||
| 38 | 7.5A | Brake + Reverse Lamps | ||
| 39 | 10A | Radio + IGN, Accessories | ||
| 40 | 7.5A | Side Lamps | ||
| 41 | 7.5A | Side Lamps | ||
| 42 | - | Spare | ||
| RELAY | ||||
| 01 | Spare | |||
| 03 | Side Lamp | |||
| 11 | Spare | |||
| 12 | Spare | |||
| 13 | Spare | |||
| 21 | Main(Yellow) | |||
| 22 | Spare | |||
| 23 | Fan (Yellow) | |||
| 31 | Spare | |||
| 32 | Indicator Unit | |||
| 33 | Master Ignition | |||
| 41 | Fuel Pump | |||
| 42 | Wiper Delay | |||
| 43 | Starter | |||
| 51 | Fan (Yellow) | |||
| 52 | Dip Beam | |||
| 53 | Horn | |||

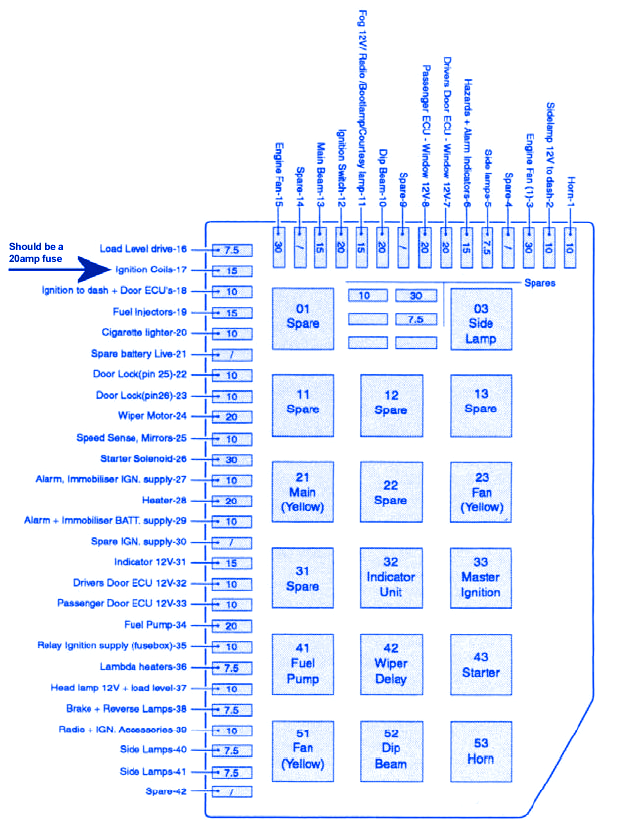

TVR Tuscan 3.6 2005 Fuse Panel/Board – Fuse Symbol Map
