Vauxhall Astra 2005 Hatchback Main Fuse Box/Block Circuit Breaker Diagram
| No. | Circuit | Rating |
|---|---|---|
| 24 | Fuel Pump | 15A |
| 25 | Transmission Electronics | 15A |
| 26 | Engine Electronics | 10A |
| 27 | Power Steering | 5A |
| 28 | Transmission Electronics | 5A |
| 29 | Transmission Electronics | 7.5A |
| 30 | Engine Electronics | 10A |
| 31 | Adaptive Forward Lighting, Headlight Range Adjustment | 10A |
| 32 | Brake System, Air Conditioning System, Clutch switch | 5A |
| 33 | Adaptive Forward Lighting, Headlight Range Adjustment, Light Switch | 5A |
| 34 | Control Unit, Steering Column Module | 7.5A |
| 35 | Infotainment System | 20A |
| 36 | Mobile Telephone, Digital Radio, Twin Audio, Display | 7.5A |

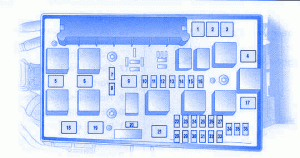

Vauxhall Astra 2005 Hatchback Main Fuse Panel/Board – Fuse Symbol Map
