Vauxhall Vivaro 2014 In The Engine Compartment Fuse Box / Block Circuit Breaker
Vauxhall Vivaro 2014 In The Engine Compartment Fuse Box / Block Circuit Breaker

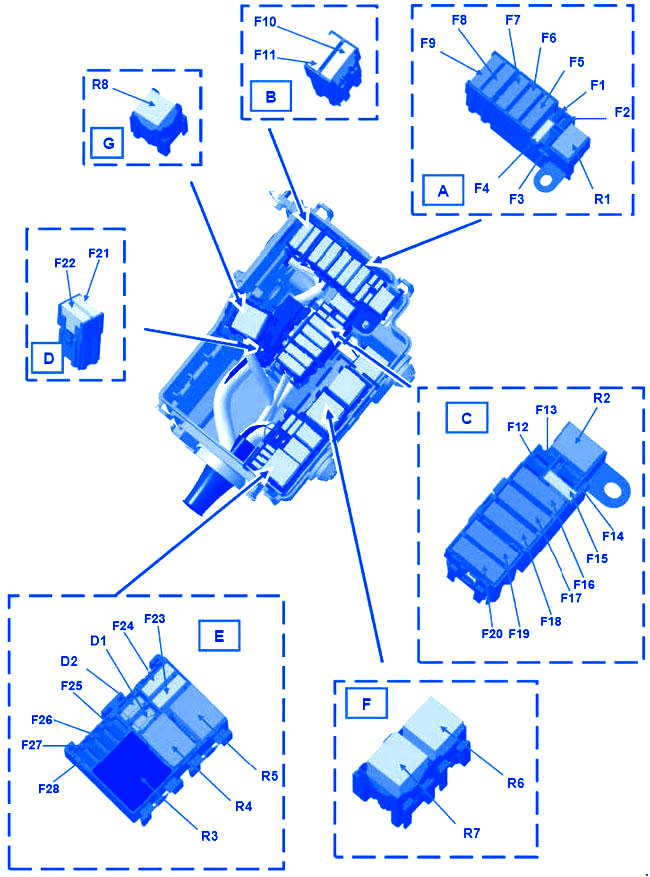

Number A Description F1 — — F2 — — F3 25 ABR/ESP F4 30 Starter F5 70 Passenger compartment 1 F6 70 Passenger compartment 3 F7 50 ABR/ESP F8 60 Passenger compartment 2 F9 20 Mirrors heater 40 Rear window + mirrors heater F10 — — F11 — — F12 — — F13 — — F14 15 + battery feed air conditioning compressor F15 15 Fuel pump F16 70 Heater control unit F17 60 Heating element unit F18 60 Heating element unit F19 40 Engine suffix *408 and air conditioning or 450 and heating Motor-driven fan assembly 1 50 Engine suffix *408 and heating or 450 and air conditioning Motor-driven fan assembly 1 F20 40 Engine suffix *408 and air conditioning or 450 Motor-driven fan assembly 2 F21 — — F22 — — F23 — — F24 — — F25 — — F26 25 Diesel heater F27 20 Engine injection system F28 15 Engine injection system Relay
R1 20 Starting R2 20 Fuel pump relay R3 40 Injection supply relay R4 20 Compressor control relay R5 — — R6 70 Highspeed (Motor-drivenfan assembly 1) R7 40 Low speed (Motor-driven fan assembly) R8 40 Highspeed (Motor-drivenfan assembly 2)
Symbol Description Diodes D1 Air conditioning compressor D2 —
Vauxhall Vivaro 2014 In The Engine Compartment Fuse Panel / Board – Fuse Symbol Map
