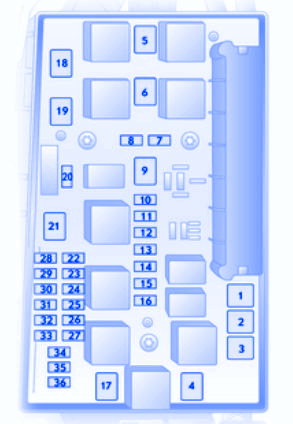

Vaxuhall Zafira B 2005 Engine compartment Fuse Box / Block Circuit Breaker
Vaxuhall Zafira B 2005 Engine compartment Fuse Box / Block Circuit Breaker
Number Circuit Rating Fuse assignments in conjunction with load compartment fuse box version A
1 ABS 20A 2 ABS 30A 3 Interior fan, Electronic Clim ate Control (ECC) 40A 4 Interior fan heating and air conditioning system 40A 5 Cooling fan 1 (dep ending on engine) 30A 40A 6 Cooling fan 2 (dep ending on engine) 20A 30A 7 Central locking system 20A 8 Windscreen washer, rear window washer 10A 9 Heated rear window, heated exterior mirror 30A 10 Diagnostics plug 7,5A 11 Instruments 7,5A 12 Mobile telephone, digital radio, Twin Audio, display 7,5A 13 Courtesy light 5A 14 Windscreen wiper 30A 15 Windscreen wiper 30A 16 Horn, ABS, brake light switch, air conditioning system 5A 17 Diesel fuel filter or air conditioning system 25A 20A 18 Starter 25A 19 — — 20 Horn 15A 21 Engine electronics 20A 22 Engine electronics 7,5A 23 Headlight range adjustment 5A 24 Fuel pump 15A 25 — — 26 Engine electronics 10A 27 Heating, air conditioning system, air quality sensor 7,5A 28 — — 29 Electro-hydra ulic power-assisted steering 5A 30 Engine electronics 10A 31 Rear window wiper 15A 32 Brake light switch 5A 33 Headlight range adjustment, light switch, clutch switch, instrument, driver’s door module 5A 34 Control unit, steering colum n module 7,5A 35 SInfotainment system 20A 36 Cigarette lighter, front power outlet 15A
Vaxuhall Zafira B 2005 Engine compartment Fuse Panel / Board – Fuse Symbol Map
Number Circuit Rating Fuse assignments in conjunction with load compartment fuse box version B 1 ABS 20A 2 ABS 30A 3 Interior fa n, Electronic Climate Control (ECC) 40A 4 Interior fan heating and air conditioning system 40A 5 Cooling fan 1 (dep ending on engine) 30A 40A 6 Cooling fan 2 (dep ending on engine) 20A 30A 40A 7 Windscreen washer system 10A 8 Horn 15A 9 Headlight washer system 25A 10 Emergency unlocking of central locking system 20A 11 — — 12 — — 13 Front fog lights 15A 14 Windscreen wiper 30A 15 Windscreen wiper 30A 16 Control module electronics, Open&Start system, ABS, brake light switch 5A 17 Diesel fuel filter heating 25A 18 Starter 25A 19 Transmission electronics 30A 20 Air conditioning system 10A 21 Engine electronics 20A 22 Engine electronics 7,5A 23 Adaptive forward lighting, headlight range adjustment 10A 24 Fuel pump 15A 25 Transmission electronics 15A 26 Engine electronics 10A 27 Electro-hydra ulic power-assisted steering 5A 28 Transmission electronics 5A 29 Transmission electronics 7,5A 30 Engine electronics 10A 31 Adaptive forward fighting, headlight range adjustment 10A 32 Brake system, air conditioning system, clutch switch 5A 33 Adaptive forward lighting, headlight range adjustment, light switch 5A 34 Steering column control unit 7,5A 35 Infotainment system 20A 36 Mobile telephone, Infotainment system, display 7,5A
Vaxuhall Zafira B 2005 Engine compartment Fuse Panel / Board – Fuse Symbol Map
