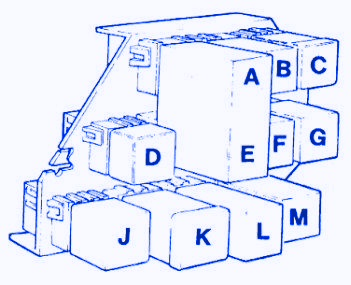

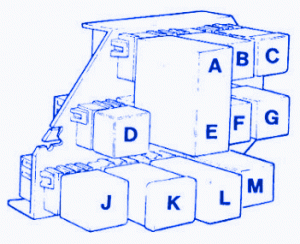

Volvo 760 TD 1991 Mini Fuse Box/Block Circuit Breaker Diagram
| Relay Symbol | Relay Map |
|---|---|
| A | Headlights |
| B | Fuel Pump Relay |
| C | Central Locking |
| D | Foglight |
| E | Headlights - 1992 |
| F | Bulb Failure Sensor |
| G | Overdrive |
| J | Bypass 15l /Power Windows |
| K | Rear Window Wiper Intermittent Operation |
| L | Windshield Wiper Intermittent Operation |
| M | Seat Belt Reminder |
Volvo 760 TD 1991 Mini Fuse Panel/Board – Fuse Symbol Map
