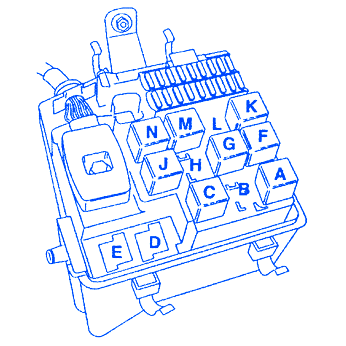

Volvo S90 1998 Fuse Box/Block Circuit Breaker Diagram
| SYMBOL | DESCRIPTIONS |
|---|---|
| ENGINE COMPARTMENT RELAY/FUSE BOX | |
| A | Pulse Secondary Air Injection System (PAIR) Pump Relay |
| B | Not Used |
| C | Fuel System Main Relay |
| D | Not Used |
| E | Not Used |
| F | A/C Relay |
| G | Front Foglights Relay |
| H | Not Used |
| J | Ignition Coil Relay |
| K | Starter motor Relay |
| L | Not Used |
| M | marker/Parking Lights Relay |
| N | Horn Relay |
Volvo S90 1998 Fuse Panel/Board – Fuse Symbol Map
