Volvo V70 5cyl Trunk 2004 Fuse Box/Block Circuit Breaker Diagram

Volvo V70 5cyl Trunk 2004 Fuse Box/Block Circuit Breaker Diagram

No.Fuse FunctionAmps
23Light Switch Module (LSM), Data Link Connector, Climate Control Module (CCM)5A
24Extended X Feed Via Relay, Climate Control Module (CCM), Driver Information Module (DIM), Power Driver Seat, Geartronic, Shift Lock, Cobustion Preheater Module (CPM), (Parking Heater)10A
25Via Ignition Switch, Starter Motor Relay, Engine Control Module (ECM), Central Electronic Module (CEM),Fuse 11C/7 SRS Control module, Antenne Ring10A
26Blower30A
27Via Switch Module for Front Door (DDM/PDM), Central Locking, Power Windows, Door Warning Lights, Heated Door Mirrors, Power Door Mirrors, Door Mirror Lighting15A
28Overhead Lighting, Upper Electronic Module (UEM), Switch Module-Dome Light, Vanity Mirror Lghting10A
29Alarm Siren5A
30Side Marker Light-Left Front, Parking Light-Left Front, Parking/Taillight Lamps-Left Rear10A
31Side Marker Light-Right Front, Parking Light-Right Front, Right Rear Lamps for Parking Lights and Tailights, License Plate Lighting10A
32Fuse 11C/29 Via Central Electronic Module (CEM), Interior Lighting, Electronic Power Steering,Glove Compartment Lighting10A
33Fuel Pump15A
34Sunroof15A
35Via Switch Module, Left Front Door (DDM/PDM), Central Lock Power Windows, Heated Door Mirror, Power Door Mirrors, Rearview Mirror Lighting Door Warning Light25A
36Via Switch Module, Right Front Door (DDMPDM), Central Lock Power Windows, Heated Door Mirror, Power Door Mirrors, Rearview Mirror Lighting Door Warning Light25A
37Rear Power Windows, Power Child Lock30A
38--

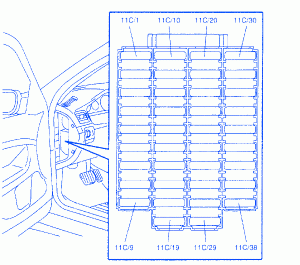

Volvo V70 5cyl Trunk 2004 Fuse Panel/Board – Fuse Symbol Map
