Volvo XC60 2010 Dash Fuse Box/Block Circuit Breaker Diagram
| No. | Fuse Function | A |
|---|---|---|
| 1 | LH Front Lamp Housing 10/1 | 10A |
| 2 | RH Front Lamp Housing 10/2 | 10A |
| 3 | Low Beam Relay 2/62 | 15A |
| 4 | High Beam Relay 2/63 | 20A |
| 5 | Power Seat module (PSM), Drivers Side 4/52 | 30A |
| 6 | Power seat Module (PSM), Passenger Side 3/27 | 30A |
| 7 | LH Seat heater 9/12 | 15A |
| 8 | RH Seat Heater 9/13 | 15A |
| 9 | ABS Control Module 4/16 , Control Module, Steering Wheel Angle Sensor 4/68 | 5A |
| 10 | LH High Beam 10/68 | 15A |
| 11 | RH High Beam 10/64 | 15A |
| 12 | RH/LH Headlight Wiper Motor 6/3-4, LH/RH Beam Adjustment Actuator 6/38-39 | 15A |
| 13 | Cigarette Lighter/ 12V Outlet Front 9/1, Cigarette Lighter/ 12V , Rear 9/25 | 20A |
| 14 | Seat Belt Lock Switch, LH Seat 3/93, Seat Belt Lock Switch, RH seat 3/94, Power Seat Module (PSM), Passenger Side 3/27, Central Electronic Module (CEM) 4/56, SRS Control Module 4/9 | 5A |
| 15 | Radio 16/1, RTI Display 16/46 | 5A |

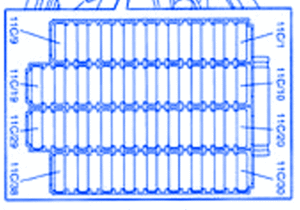

Volvo XC60 2010 Dash Fuse Panel/Board – Fuse Symbol Map
