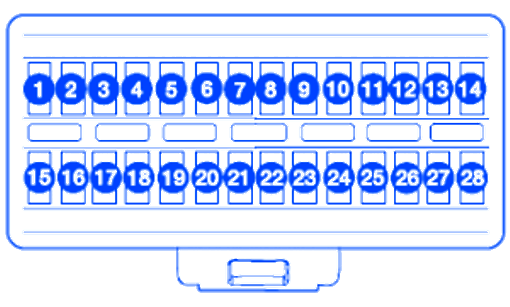

Volvo XC70 2011 Main Engine Fuse Box/Block Circuit Breaker Diagram
| No. | Amps | Function |
|---|---|---|
| 1 | 5A | Rain Sensor* |
| 2 | 10A | SRS Syestem |
| 3 | 5A | ABS Brakes, Electric Parking Brake |
| 4 | 7.5A | Accelerator pedal, Heated Seats* |
| 5 | - | - |
| 6 | 15A | ICM Display, CD & Radio |
| 7 | 7.5A | Steering Wheel Module |
| 8 | - | - |
| 9 | 15A | High Beam |
| 10 | 20A | Moonroof |
| 11 | 7.5A | Backup Lights |
| 12 | - | - |
| 13 | 15A | Front Fog Light* |
| 14 | 15A | Windshield Washers |
| 15 | 10A | Adaptive Cruise Control ACC* |
| 16 | - | - |
| 17 | 7.5A | Overhead Courtesy Lighting, Control Panel Driver's door/Power Passenger Seat* |
| 18 | 5A | Information Display |
| 19 | 5A | Power Driver's Seat |
| 20 | - | - |
| 21 | 5A | Remote Key Receiver, Alarm Sensors |
| 22 | 20A | Fuel Pump |
| 23 | 20A | Electric Steering Column Lock |
| 24 | - | - |
| 25 | 10A | Lock Tank/Trunk |
| 26 | 5A | Alarm Siren, ECC |
| 27 | 5A | START/STOP ENGINE Button |
| 28 | 5A | Brake Light Switch |
Volvo XC70 2011 Main Engine Fuse Panel/Board – Fuse Symbol Map
