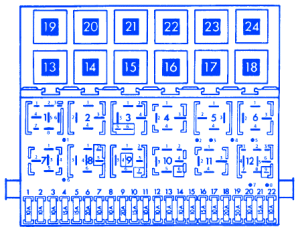

VW Golf 1989 Fuel Pump Fuse Box/Block Circuit Breaker Diagram

VW Golf 1989 Fuel Pump Fuse Box/Block Circuit Breaker Diagram



Fuse No.Ampere RatingDescription
110AHeadlight, Low Beam, Left
210AHeadlight, Low Beam, Right
310AInstrument Panel Lights, License Plate Lights
415AGlove Box Light
515AWiper/Washer
620AFresh Air Blower
710ATaillight, Side Marker Light, Right
810ATaillight, Side Marker Light, Left
920ARear Window Defogger
1015AOpen, or Fog Lights (2.0 16-Valve)
1110AHeadlight, High Beam, Left
1210AHeadlight, High Beam, Right
1310AHorn Radiator Cooling Fan
1410ABackup Lights, Washer Nozzle Heaters
1510AOpen or Engine Electronics (2.0 16-Valve)
1615ADash Warning Lights
1710AEmergency Flasher Switch
1820AFuel Pump, OXS Heater (Gasoline Engines)
1930ARadiator Cooling Fan, A/C
2010ABrake Lights, Cruise Control
2115AInterior Lights, Digital Clock
2210ARadio, Cigarette Lighter

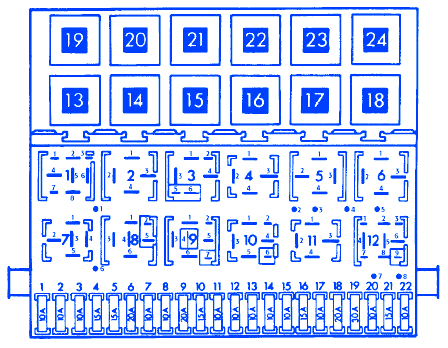

VW Golf 1989 Fuel Pump Fuse Panel/Board – Fuse Symbol Map
