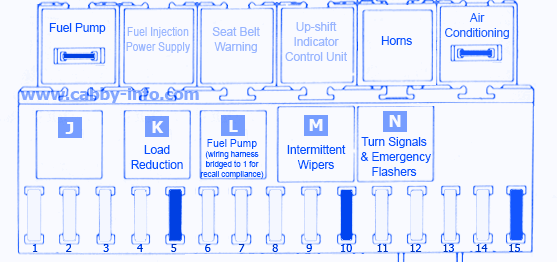

VW LT 28 1986 Fuse Box/Block Circuit Breaker Diagram

VW LT 28 1986 Fuse Box/Block Circuit Breaker Diagram



FUSE SYMBOLFUSE MAP
1Headlights (Low Beam, Left)
2Headlights (Low Beam, Right)
3Headlights (High Beam, Left) High Beam Indicator Light
4Headlights (High Beam, Right)
5Rear Window Defroster
6Emergency Flasher, Radio
7Cig, Lighter, Clock, Interior Lights, Instrument Cluster
8Turn Signals, Turn Indicator Light
9Back-Up Lights, Horns
10HVAC Blower Fan
11Windshield Wiper/Washers
12License Plate Lights, Trunk Light
13Exterior Running Lights, Brake Light - Right
14Exterior Running Lights, Brake Light - Left
15Radiator Cooling Fan
Fuel Pump (ON Fuel Pump Relay)
Air Conditioning (ON A/C Relay)

VW LT 28 1986 Fuse Panel/Board – Fuse Symbol Map
