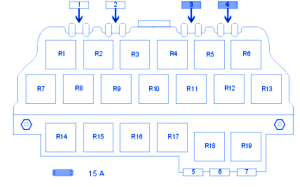

VW Mk5 2007 Under Dash Fuse Box/Block Circuit Breaker Diagram
| FUSE/RELAY SYMBOL | AMPS | FUSE/RELAY MAP |
|---|---|---|
| Fuse 1 | Not Used | |
| Fuse 2 | Not Used | |
| Fuse 3 | 15A | Central Locking |
| Fuse 4 | 15A | Alarm Horn |
| Fuse 5 | Seat(S) | |
| Fuse 6 | Not Used | |
| Fuse 7 | Window (S) | |
| Relay R1 | Not Used | |
| Relay R2 | Tailgate/Boot Release | |
| Relay R3 | Not Used | |
| Relay R4 | Fog Lights | |
| Relay R5 | Multi-Function Steering Wheel | |
| Relay R6 | Multi-Function Steering Wheel | |
| Relay R7 | Brake Light Relay | |
| Relay R8 | Heated Mirror(S), Coolant Shut-Off Valve Relay | |
| Relay R9 | Not Used | |
| Relay R10 | Fuel Pump |
VW Mk5 2007 Under Dash Fuse Panel/Board – Fuse Symbol Map
