VW New Beetle 2004 Main Fuse Box/Block Circuit Breaker Diagram

VW New Beetle 2004 Main Fuse Box/Block Circuit Breaker Diagram



PositionDescriptionAmperage
1Heated Washer Nozzles, Mirrors10A
2Turn Signal System10A
3Illumination5A
4License Plate Light5A
5Comfrost System7.5A
6Central Locking System5A
7Back-Up Lights10A
8Telephone System (Future Option)5A
9ABS5A
10Engine Control, Gasoline10A
11Instrument Cluster, Shift Lock5A
12B+ (Battery Positive Voltage)for DLC7.5A
13Brake Lights10A
14Interior Lights, With Central Locking10A
Interior Lights Only5A
15Instrument Cluster, Automatic Trans5A
16A/C Clutch10A
17Door Lock Heater(Future Option)7.5A
18High Beam Right10A
19High Beam Left10A
20Low Beam Right10A
21Low Beam Left10A
22Tail and Side Marker Lights Right5A
23Tail and Side Marker Lights Left5A
24Wiper System, Washer Pump20A
25Fresh Air Blower25A
26Rear Window Defogger25A
27Daytime Running Lights10A
28Fuel Pump, Gasoline15A
29Engine Control, Gasoline15A
Engine Control, Diesel10A
30Sunroof20A
31Automatic Transmission20A
32Engine Control, Injectors, Gasoline10A
Engine Control, Injectors, Diesel15A
33Headlight Washer System20A
34Engine Control10A
35Trailer Socket30A
36Fog Lights15A
37Radio System10A
38Luggage Compartment Light, Central Locking System15A
39Emergency Flasher System15A
40Dual Horn20A
41Cigarette Lighter, 12V Power Outlets15A
42Radio System25A
43Engine Control10A
44Heated Seats15A

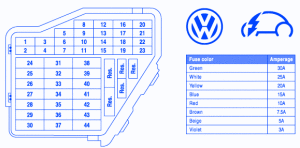

VW New Beetle 2004 Main Fuse Panel/Board – Fuse Symbol Map
