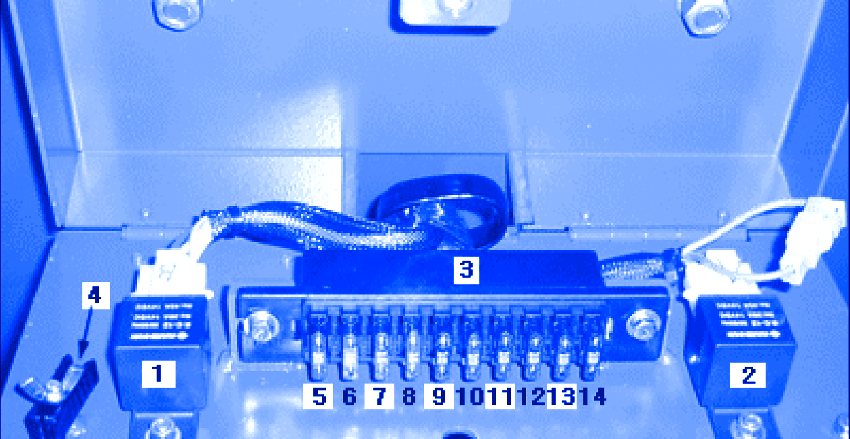

| No. | Function |
|---|---|
| Relay | |
| 1 | Engine Pre-Heater Relay |
| 2 | Starter Relay |
| 3 | Fuse Panel |
| 4 | Turn Signal Flasher (optional) |
| No. | Rating [A] | Function |
|---|---|---|
| 5 | 20 | Head Lamp |
| 6 | 10 | Rear Lamp |
| 7 | 15 | Wiper (optional) |
| 8 | 10 | Back up Alram |
| 9 | 10 | Front Horn |
| 10 | 15 | Cigar Jack |
| 11 | 10 | Aux, Hyd, Solenoid |
| 12 | 10 | Alternator Light |
| 13 | 10 | Brake Valve Solenoid |
| 14 | 15 | Shut Down. |
Yuchai DL165H Electrical Panel Fuse Panel / Board – Fuse Symbol Map
